CNC Parts Flange Square Type Linear Guide Rail Linear Motion Slide For CNC

Product Categories

Shaanxi Fortune Industries Co.ltd

Contact Now

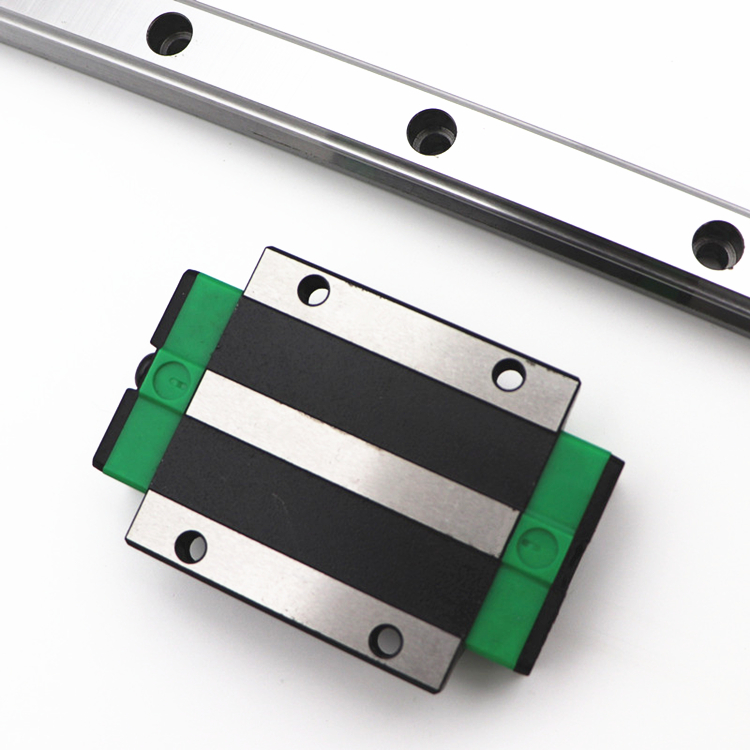

CNC Parts Flange Square Type Linear Guide Rail Linear Motion Slide For CNC

Brand Name : SFT

Model Number : HGR20

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Feature : Smooth Motion, Low Friction, High Speed

Type : Linear Motion Guideway

Length : 100-4000mm(Custmized )

Application : Machinery Repair Shops, Printing Shops, cnc

Material : Carbon steel, Alloy Steel

Performance : High Precision Low Noise

Contact Now

CNC Parts flange square type Linear Guide Rail linear motion slide for CNC

The MG series is a miniature linear guide way that comes in a compact size with a Gothic arch contact design that offers high stiffness and high rigidity against moment loads in all directions. The MG series also offers anti-corrosion protection which all material is in a special grade of stainless steel for compatibility in various working environments. The MG series is available in a narrow block type (MGN) and also with an enlarged width (MGW).

MGN and MGW series linear guideway can be classified into non-interchangeable and interchangeable types, which are the same size.The interchangeable type is more convenient due to replaceable rails; however, the precision is less than non-interchangeable type. With strict dimension and quality control, the interchangeable type linear guideways would be a rather suitable choice for customers when rails don’t need to be paired. The model number contains information of the size, type, accuracy, preload, and so on.

Features of MGN Series
1. Tiny and light weight, suitable for miniature equipment.
2. All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for anti-corrosion purpose.
3. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
4. Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation.
5. Interchangeable types are available in certain precision grades.

Name	Slider guide
Type	Automatic equipment high speed transmission device
Precision grade	N, H, P
Combination	At least 100mm linear rail + 1 piece slide block
Material	Heat treated steel
Guide Size	Width: fixed, between 25mm Length: up to 4 meters long, longer stitching
Colour	Silver or black
Shape	Rectangle
Certification	ISO9001
Effect	1. Parallelism and high precision 2. The slider and the guide rail are interchangeable, saving cost 3. High rigidity in all directions 4. Reduce friction
Application area	Applied to sliding friction guides
Sample	No
Delivery period	7 days
Packing	1.PE bag, shockproof bubble bag, export standard carton, wooden box 2. According to customer's special requirements

Model

Dimensions

Slider size

Height

Width

Length

S*l

Nozzle specification

LSA 25 A

81.6

23.5

5.5

M8*16

5.8

3.3

G-M6

Advantages and Features of Linear Guides

(1) High positional accuracy

(2) Long life with high motion accuracy

(3) High speed motion is possible with a low driving force

(4) Equal loading capacity in all directions

(5) Easy installation

(6) Easy lubrication

(7) Interchangeability

Application

Automation devices

High-speed transportation equipment

Precision measuring equipment

Semiconductor manufacturing equipment
